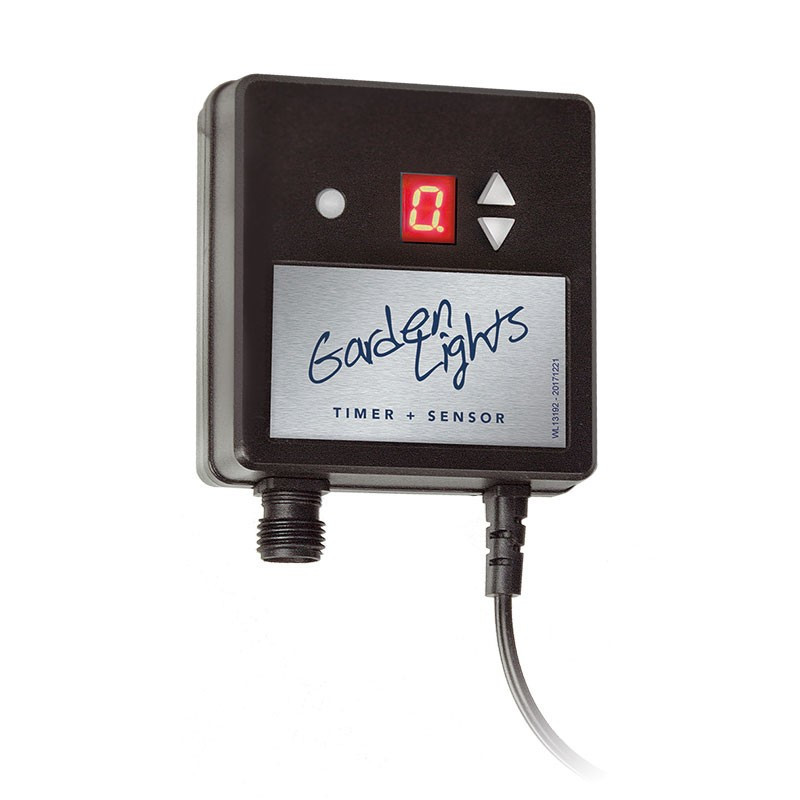

The Techmar dusk to dawn timer sensor is simply brilliant and a must have for any Techmar system.
The dusk to dawn is a switch that automatically turns your lights on when it gets dark and keeps them on from 1-9 hours. The unit simply plugs into the system and is very easy to set up.
Your transformer needs at least 1 watts spare capacity to run this.
Must be wall mounted outside (see below)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
New Version...
The timer sensor comes with 1mtr of fitted SPT-2 cable on the input side of the unit. This is not detachable. Should you need a extension cable please look at either 146a 1mtr , 6154011 2mtr or 147A 3m extension leads (also shown below).
O = Permanently ON
A = Automatic mode. Switches on when it gets dark and off the following morning
1-9 = Timer on setting. Select 1 - 9 on the display and it will switch your lights on at dusk and off 1 - 9 hours later.
The unit also has an OFF function.
IP44 rated and suitable for outdoor use when wall mounted and must be min 0.5mtr off the ground.
Maximum loading 150w
